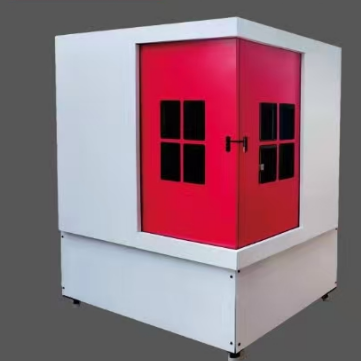

Scoliosis carving machine

Product model and specifications：RF-650

Product Features：1. Thick-walled square tubing and seamless welding technology ensure high structural strength; 2. X/Y axes: Utilizing helical gear tracks and linear square guides ensures accuracy and stability at high speeds. Z-axis: Employing a silent lead screw reduc

Adaptive symptoms：Mold processing

Detection Significance

Control System and Drive Control Method: Four-axis handheld controller + independent control card, offering flexible operation. Drive System: Jiamicon digital display servo system; high-speed stepper driver (dual motor drive for Y-axis) Advantages: Fast response, accurate positioning, smooth operation, suitable for complex patterns and high-precision machining.

Main Technical Specifications

Item/Specifications

Machining Area: 550mm × 800mm (Customization available)

Spindle Type: GKW Air-cooled Constant Power Spindle

Spindle Speed: 18000 RPM (24000 RPM Water-cooled optional)

Control System: Four-axis Handle + Independent Control Card

Drive System: Jemcom Digital Display Servo + High-speed Stepper Driver

Transmission Method: X/Y Axis: Precision Helical Gear Rail + Linear Square Guide Rail

Z Axis: Silent Lead Screw

Bed Structure: Gantry Milling for Precision Machining of Thick-walled Square Tube + Seamless Welding + Aging Stress Relief Treatment

Worktable: Aluminum Alloy Clamping Worktable + Phenolic Resin Mesh Integrated Table

Equipment Weight: Approx. 500 kg

Operation Method: Independent Handle Operation
